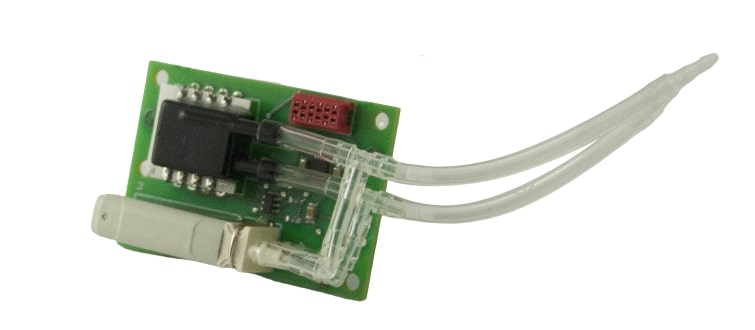

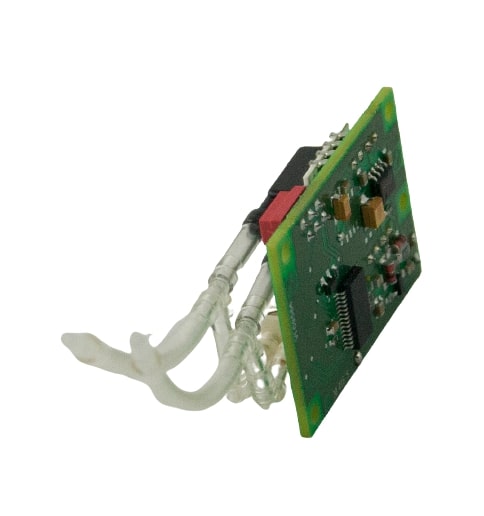

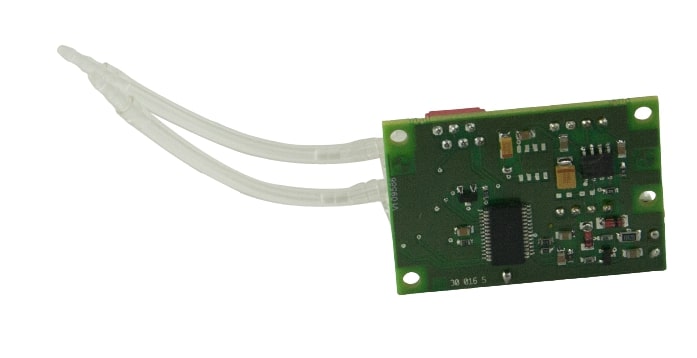

The OEM module Flow-H is designed to work with flow-pressure transducers (flow to differential pressure) like our DP Flow sensors. It can be used to measure the breathing gas flow in respiratory machines.
The module is supplying a differential pressure value, which can be used to calculate a corresponding flow value using the characteristic curve of the flow transducer. Moreover, the module delivers a flow value based on a standard curve for DP Flow transducers. The measurement is performed with a high-precision pressure sensor giving a temperature-compensated signal.
The unit is equipped with a microvalve for zero offset measurement of the pressure sensor. This feature is working even during gas flow through the flow transducer and without leakage to the ambience.
Contact us for further information
|
Supply Voltage
|
5V DC +/-5%; other voltages on request |
|
Current Consumption
|
< 15 mA (normal operation)
< 150 mA (zero offset measurement, valve active)
|
|
Interface
|
RS232 with level converter (EIA/TIA compatible)
Data rate : 19200 Baud
Data bit : 8
Stop bit: 1
Parity: None
Handshake: none
|
|
AD conversion
|
Resolution: 12 bit
Conversion time: approximately 10 ms
Maximum data rate: 100 samples per second
|
